AHD Underwater Camera with Depth & Temp Sensor

* 1/2.8’’ FOUR IN ONE  1080P

* IMX291+NVP2441H

* Support coaxial high-definition transmission, image clear, delicate

* Support OSD menu

* Support UTC function

* Adaptive digital noise reduction 2D-DNR + 3D-DNR

* 6KV lightning protection

* Dimension Dia 55*164mm

  • GLF-UDC-S200-DT

  • Granfoo

  • GLF-UDC-S200-DT

Availability:
Quantity:
Inquire

This is a Underwater Analog  Camera, the camera is cylindrical with a diameter of 55mm, shell material is Stainless steel or Titanium, measuring depth is 300meters.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

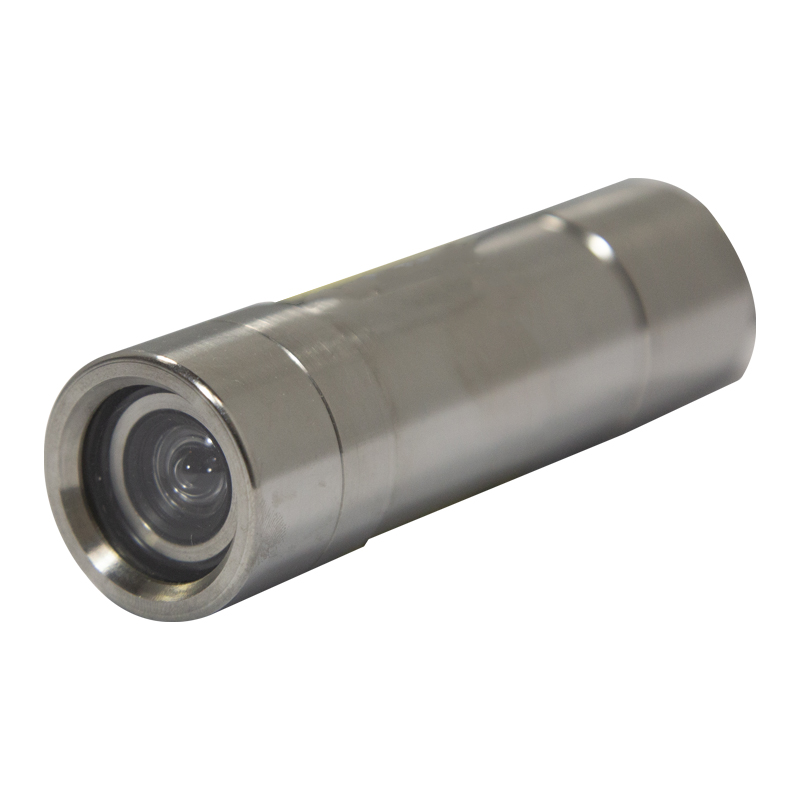

7


• 1/2.8’’ FOUR IN ONE 1080P

• IMX291+NVP2441H

• Support coaxial high-definition transmission, image clear, delicate

• Support OSD menu

• Support UTC function

• Adaptive digital noise reduction 2D-DNR + 3D-DNR

• 6KV lightning protection

• Dimension Dia 55*164mm


Model No.GLF-UDC-S200-DT
Image sensor1/2.8’’ SONY IMX291+NVP2441H
System standardPAL / NTSC
Resolution1920(H)*1080(V)
Sensitivity0.01LUX/F1.2
Horizontal definitionCoaxial HD 200w Pixel 1080p, Analog: 2000TVL
Day-night modeExternal control (default) Auto / color / black and white
Frame rate1080P@25fps / 1080P@30fps
Synchronization modeInternal synchronization
ShutterAUTO /1/50~1/50000s
Signal-Noise Ratio＞46dB
Video outputAHD/TVI/CVI/CVBS Can be switched
ConnectorMCBH4M
Working temperature-20°~ 60&deg
Working humidityRelative humidity below 90%
Power supplyDC12V (±10%）
Working depth0-300M (customized)
DimensionDia 55*164 mm (including connector)
Housing materialStainless steel /Titanium

Measuring medium

Liquid or Gas(compatible with contact material)

Overall material

Diaphragm---316L Stainless Steel(contact with the medium)

Pressure range

0~6Mpa

Pressure method

Gauge Pressure, Absolute Pressure, Negative Pressure

Output signal

RS485 (standard Modbus-RTU protocol)

Supply voltage

12~36VDC

Working conditions

medium temperature -20~85℃

Ambient temperature

-20~85℃

Ambient humidity

0%~95%RH (no condensation, no condensation)

Temperature compensation

-10~70℃

Accuracy level

0.5%FS(range ≥10KPa)

Anti-seismic performance

10g (20...2000HZ)

Overload capacity

200%

Response frequency

Analog Signal Output≤500HZ

Digital Signal Output≤5HZ

Stability performance

±0.1% FS/year

Temperature drift

±0.01%FS/year

Maximum powe

≤0.02Us(W)

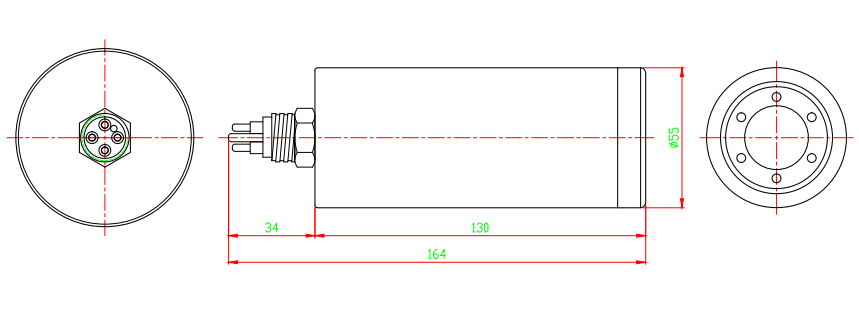

200 1


Packing

1. 1 pcs camera

2. 10m cable


Product Show

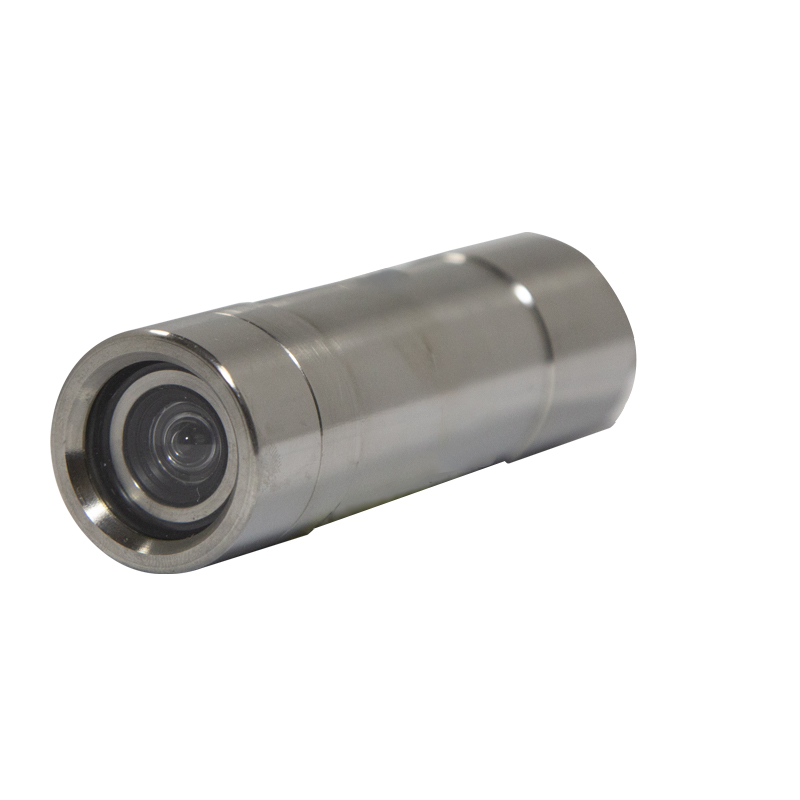

5

Underwater Analog Camera

3

Wiring

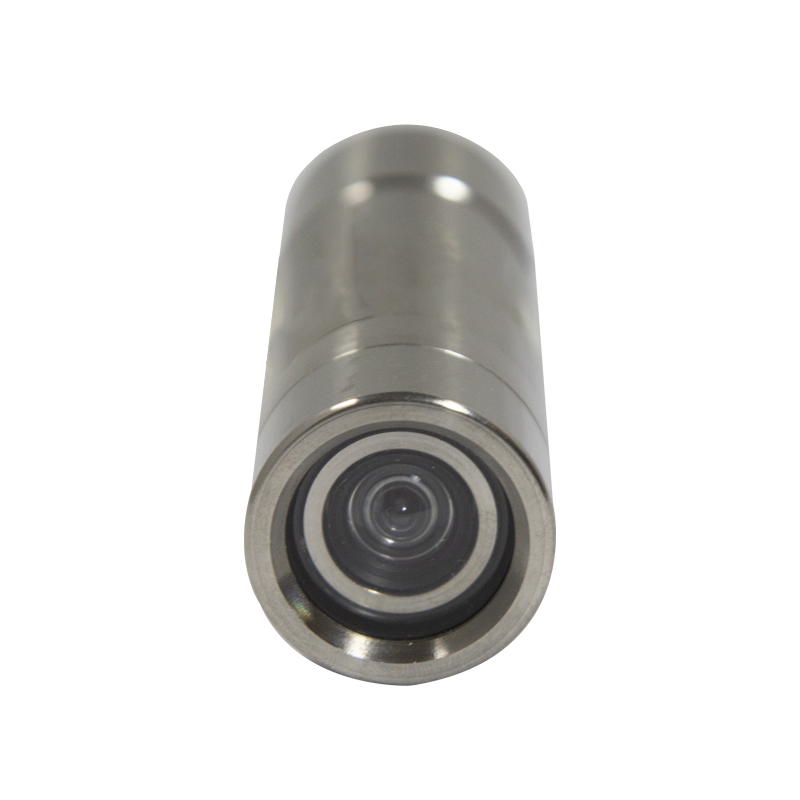

6.jpg修改

Lens

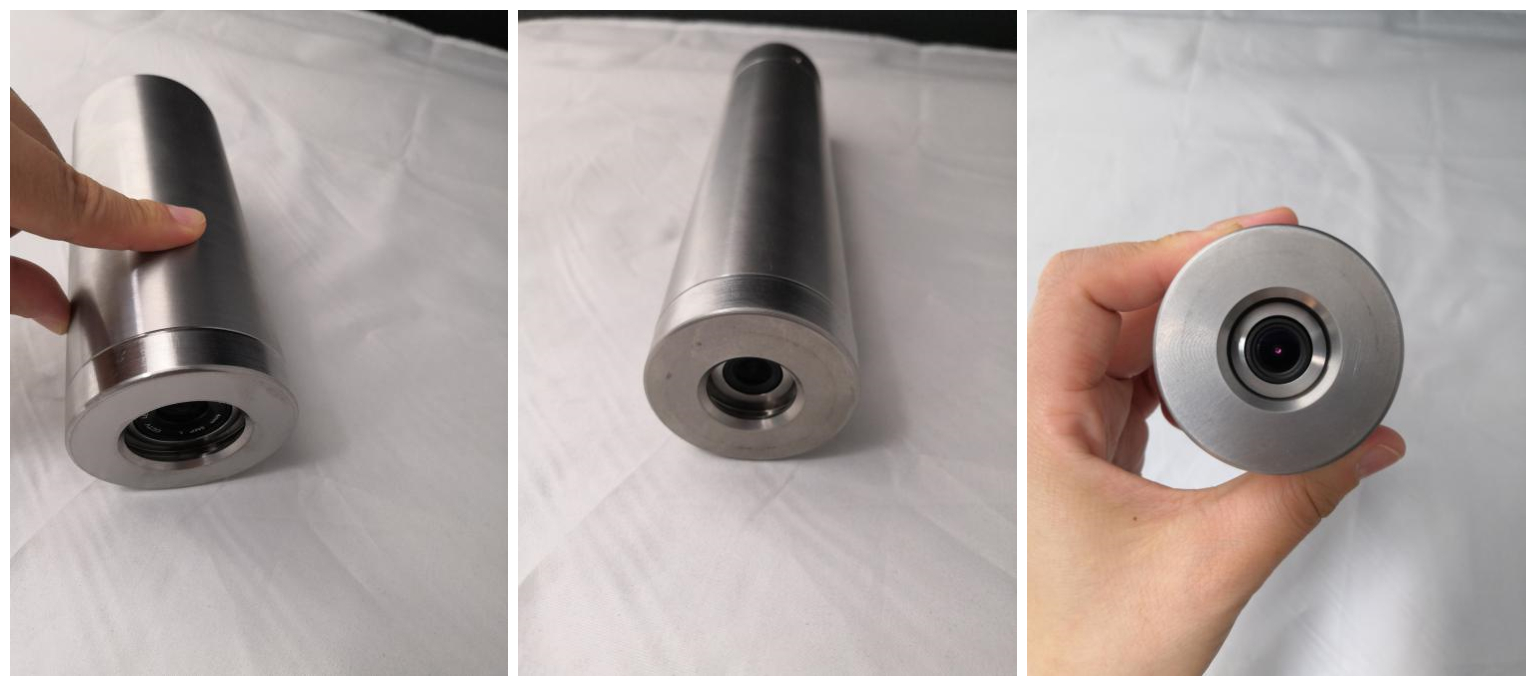

s200
