Submersible Ip Camera for Rov Underwater Cctv System Ptz Camera

* 2 million coaxial HD CMOS
* 360° continuous horizontal rotation，
* Vertical direction -5°-90°, no monitoring blind area
* 6 high brightness 0.5W white LEDs built-in lights，
* 10 levels of micro dimming
* Support customization

  • GLF-UPT-D55

  • Granfoo

  • GLF-UPT-D55

Availability:
Quantity:
Inquire

This is the Mini Underwater PT Camera, the camera DN is 55mm, measuring depth is 100m.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.



1.  2 million coaxial HD CMOS

2.  Continuous horizontal rotation 360°，

3.  Vertical direction -5°-90°, no monitoring blind area

4.  6 high brightness 1W built-in lights，10 levels of micro dimming

5.  Support customization


Name

Underwater coaxial high-definition ball machine（55）

Model NO.

GLF-UPT-D55

Main Parameters

Image Sensor

2 million coaxial HD COMS/1080p

Signal Type

HD OverCoax

FHD

2 million pixels

SYS

PAL/NTSC

Minimal Illumination

0.01 lux at F1.2 5600°K （0.001lux at F1.2 5600°K）

Video Output

1V‐75 ohms AHD/CVBS,video signal （Anti-interference technology）

Rotation Range

Continuous horizontal rotation 360°, 0° to 180° in vertical direction

Antenna Sweep Radius

Maximum in air：10m    Minimum in air：80mm

Lens

Lens

3.6mm/ F1.2

Focal Length

Electromotion Focus

Function

Function


3 speed，Low/medium and high speed，dynamic switching

6 high brightness 1W white LEDs(50000h life))，10 levels of micro dimming


General

Material

Stainless Steel/Titanium Alloy

Waterproof Level

0-100 meter

Voltage Supply

48VDC

Temperature

-20℃ ~ +60℃

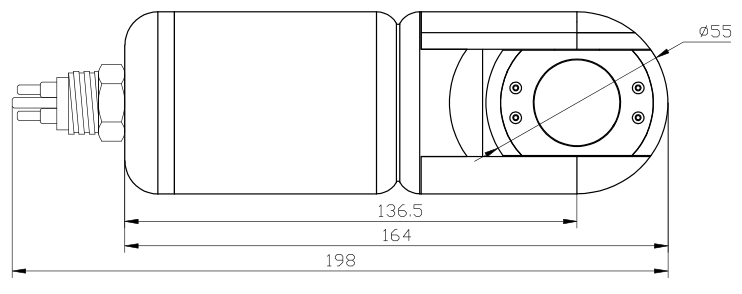

Size

Φ55*164(not including parts 34mm)

Weight

0.8KG(Stainless Steel )

Parts


Packing List

Cable、Adaptor、Warranty Card、Certification、Report

Customization

Depth（0-300 meter）

Sensor （Temperature、Pressure...）

Control Display Screen






Packing

1. 1 pcs camera

2. 10m cable

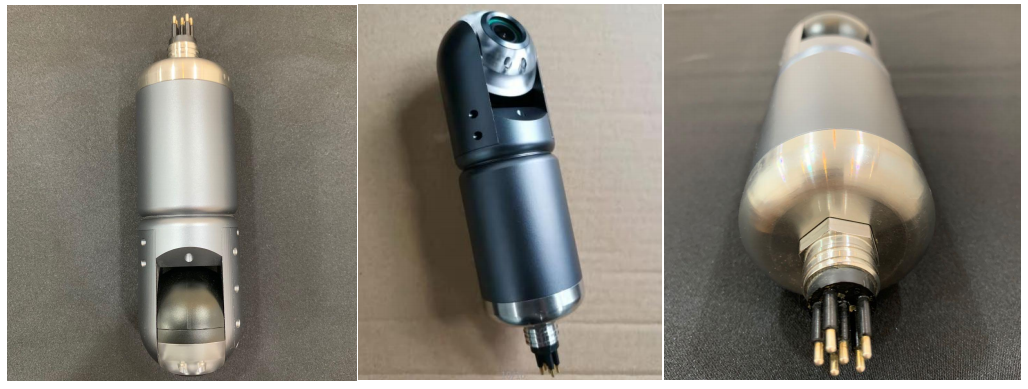

Product  Show




Previous:
Next:
submersible ip camera Camera for Rov Underwater Cctv System Underwater PTZ camera Subsea camera
