GLF-XL-12
Granfoo
GLF-XL-12
| Quantity: | |
|---|---|
Technical Specification For Cable | ||||
Cable Type |
| |||
2x2x18AWG+4x2x24AWG | ||||
General Description | ||||
Application: Fixed/mobile installations in industrial installations | ||||
NO. | ||||
GLF-UXL-12FHL | ||||

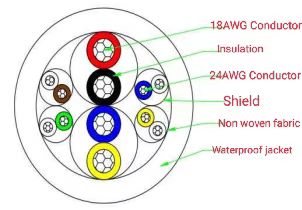

Cable Construction | ||||
Conductor | Conductor Material | Bare copper wire | ||
Conductor Structure | 18AWG：30/0.19mm 24AWG：7/0.2mm | |||
Strand OD. | 1.2mm/0.6mm | |||
Insulation | Insulation Material | PE | ||
Insulation Thickness | 0.5mm/0.2mm | |||
Insulation Colour | Blue, Red, Black, Yellow Blue, Blue/White, Orange, Orange/White, Green, Green/White, Brown, Brown/White | |||
Insulation OD. | 2.2mm/1.0mm | |||
Twist | Twist Structure | 24AWG signal wire, twisted pair of the same color | ||
Lapping | Aluminum foil + tinned wire braid | |||
Assemble | Structure | Twisted into cable | ||
Filling | Cotton thread filling | |||
Lapping | Nnon-woven fabric | |||
Jacket | Jacket Material | Waterproof Polyurethane | ||
Jacket Thickness | 1.4mm | |||
Jacket Colour | Yellow | |||
Approximate OD. | 11.5±0.5mm | |||
Mark | ||||
Electrical Characteristics | Installation Conditions | |||
Max.Conductor DC Resistance at 20℃(Ω/kM)2 | 21.4/89.4 | Installation temperature | -30℃ ~ +80℃ | |
Technical Specification For Cable | ||||
Cable Type |
| |||
2x2x18AWG+4x2x24AWG | ||||
General Description | ||||
Application: Fixed/mobile installations in industrial installations | ||||
NO. | ||||
GLF-UXL-12FHL | ||||
Cable Construction | ||||
Conductor | Conductor Material | Bare copper wire | ||
Conductor Structure | 18AWG：30/0.19mm 24AWG：7/0.2mm | |||
Strand OD. | 1.2mm/0.6mm | |||
Insulation | Insulation Material | PE | ||
Insulation Thickness | 0.5mm/0.2mm | |||
Insulation Colour | Blue, Red, Black, Yellow Blue, Blue/White, Orange, Orange/White, Green, Green/White, Brown, Brown/White | |||
Insulation OD. | 2.2mm/1.0mm | |||
Twist | Twist Structure | 24AWG signal wire, twisted pair of the same color | ||
Lapping | Aluminum foil + tinned wire braid | |||
Assemble | Structure | Twisted into cable | ||
Filling | Cotton thread filling | |||
Lapping | Nnon-woven fabric | |||
Jacket | Jacket Material | Waterproof Polyurethane | ||
Jacket Thickness | 1.4mm | |||
Jacket Colour | Yellow | |||
Approximate OD. | 11.5±0.5mm | |||
Mark | ||||
Electrical Characteristics | Installation Conditions | |||
Max.Conductor DC Resistance at 20℃(Ω/kM)2 | 21.4/89.4 | Installation temperature | -30℃ ~ +80℃ | |
