Underwater Surveillance Camera, Waterproof And Corrosion Subsea Camera with Plastic Casing

Product Feature

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Standard H.264 video compression technology, accurate and stable code stream control

4. IP camera, ONVIF Compliant

5. Open SDK, support multiple network protocols and networking methods

6. Customized products according to different situations

  • GLF-UDC-LI200-POM5X

  • Granfoo

  • GLF-UDC-LI200-POM5X

Availability:
Quantity:

This is a low-light underwater camera, the camera DN is 65mm, optical zoom is 5X, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.




4.jpg修改




1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 600


Model No.GLF-UDC-LI200-POM5X
Image sensor1/2.9" CMOS sensor
Resolution2 Megapixel
Sensitivity0.00001Lux@F1.4 (Color mode);   0.00001Lux@F1.2 (Monochrome)
SIGNAL-NOISE RATIO≥50dB(AGC OFF)
Video compressionH.264 Main Profile  / M-JPEG
Voltage48VDC
Optical zoom5x
Network protocolTCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Internal light6PCS*1Watt (Optional without internal ledlight)
Lens3.6mm (Optional 3.2mm/ 6mm/ 8mm)
ConnectorMCBH2MSS
Measuring depth300m (Optional MAX 6000m)
Storage temperature-30-60℃
Operating temperature-20-50℃
Operating humidityRelative Humidity Below 90%
Standard housingPOM
WindowAcrylic 300m (Optional Sapphire 6000m )
Dimensions65mm(D)x170mm(L) Excluding Connector
Weight in the air1.5KG

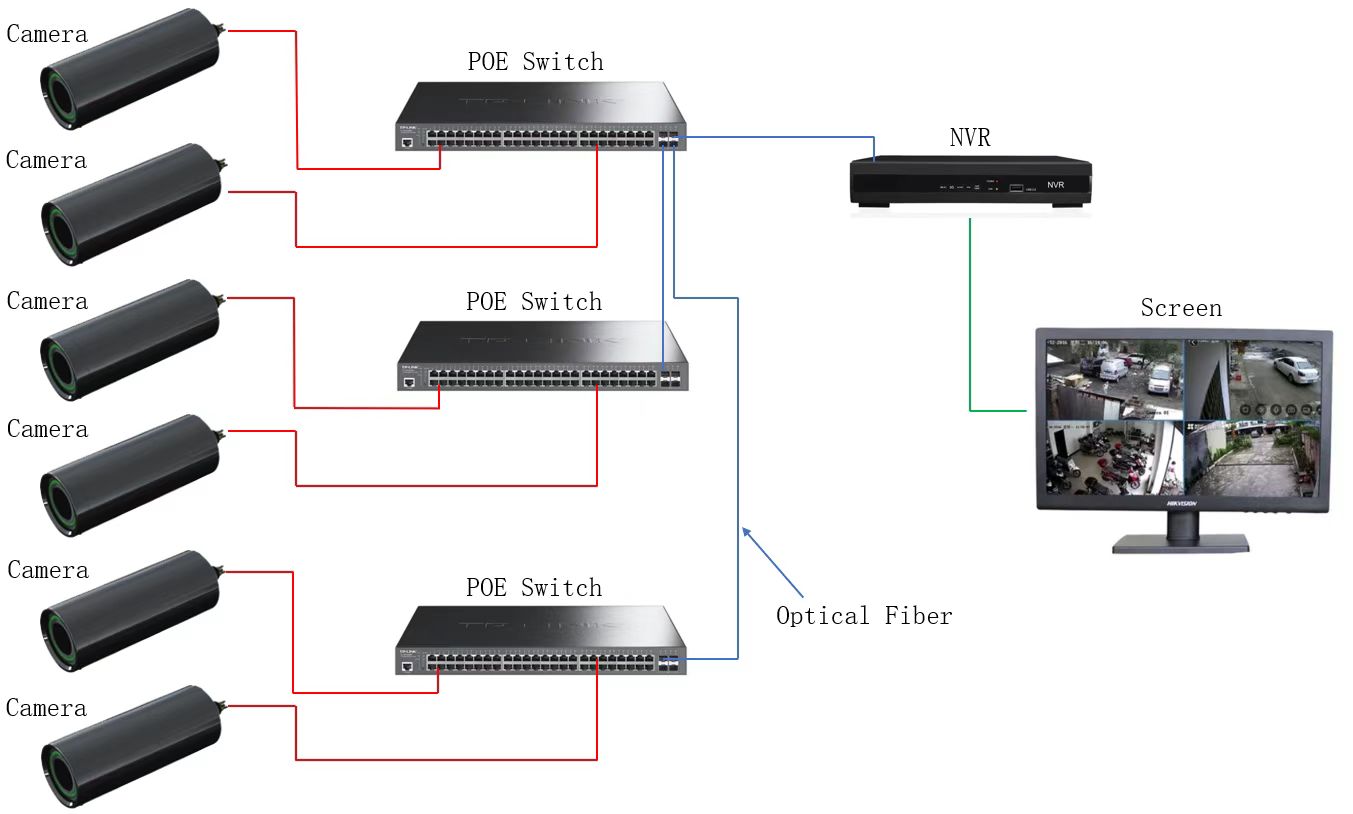

Connecting

连接图


Product Show

4.jpg修改

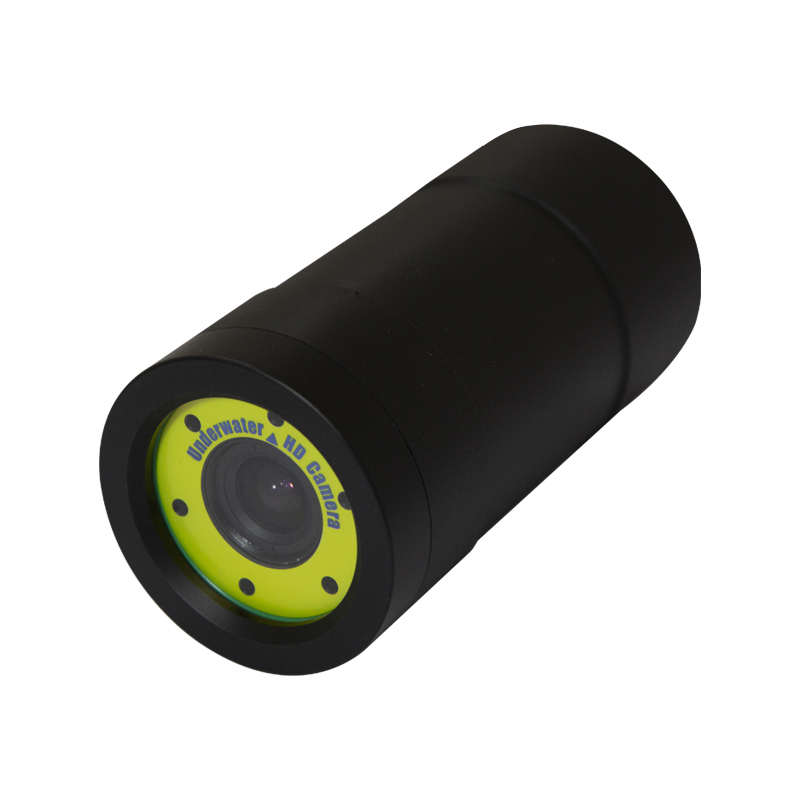

POM Low Light Underwater Camera

3

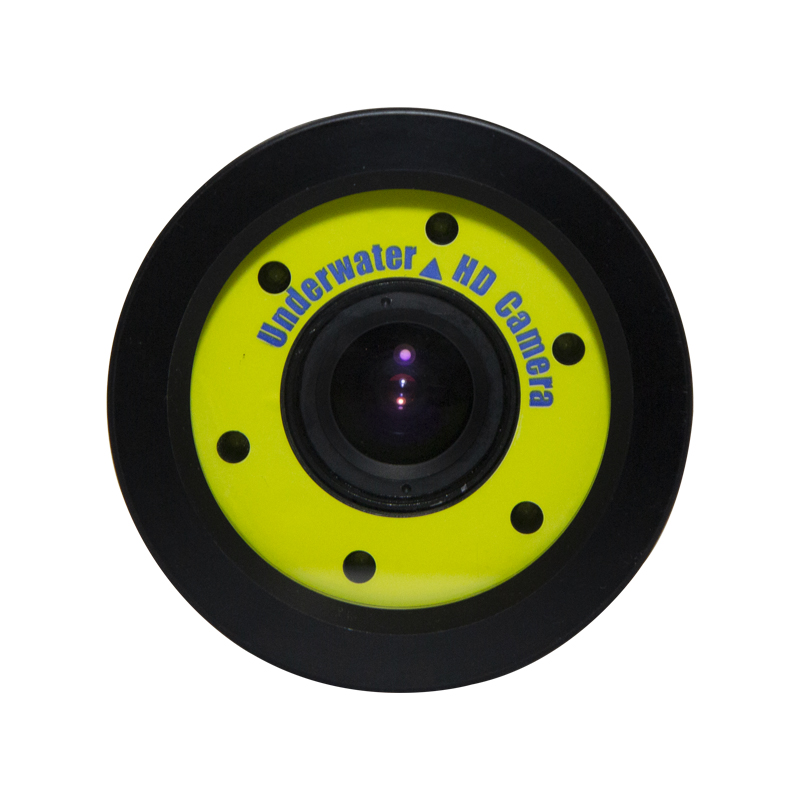

Lens

6.jpg修改

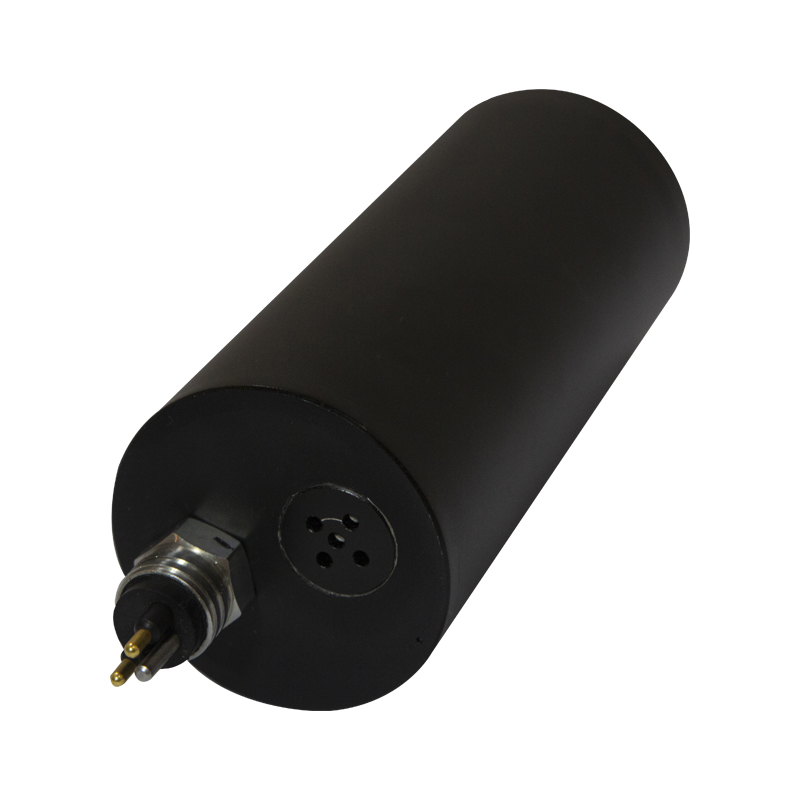

Wiring

3
