1. Small volume and lightweight, small footprint, professional wet plug.
2. High seawater corrosion-resistant stainless steel shell material.
3. Standard pin and hole position distribution, 7/16″-20 UNF tail thread, can be exchanged with different brands of the same model.
GLF-JCJ-4
Granfoo
GLF-JCJ-4
| Quantity: | |
|---|---|

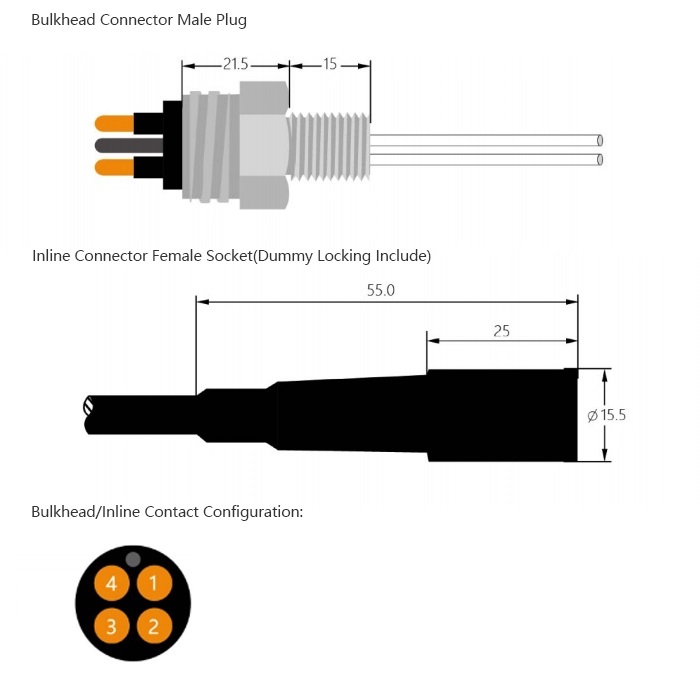

Dimensions Detail：
Specification | |
Structure | Materials and specifications |
Main | The seawater corrodes stainless steel |
Install screw | 7/16-20 UNF thread length is 15/19mm |
Socket head | Neoprene (special mixing rubber for underwater connector) |
Contact Pin | Gold-plated copper alloy, American standard pin |
Texture of material | 303 stainless steel (2 needle Ø 3.2, 3/4 needle Ø 2, 5/6/8 needle don’t need) |
O-rings | Nitrile rubber, the imported o-rings, parker 2-014, Ø 12.42 x 1.78 |
Locking lid | Polyformaldehyde resin (POM) |
Cable plug body | Special polyether |
Install line | Teflon, silver-plated pure copper. |
End cap | Neoprene (special mixing rubber for underwater connector) |
Cable plug | Pressure-resistant seawater special cable. |
Technical Performance | |
Item | Rating Value |
Depth | 0~1000 meters |
Voltage | 300V (resistance to voltage is greater than 1500V 60s) |
Working current | 2A~16A |
Insulation resistance | > 1000 m Ω (room temperature) |
Wet insertion frequency | > 500 times |
Working temperature | (-4~60)°C |
More Pins:
Bulkhead Connector Male Plug and In-Line Connector Female Socket (Dummy Locking include)
Bulkhead Connector Female Plug and In-Line Connector Male Socket (Dummy Locking include)

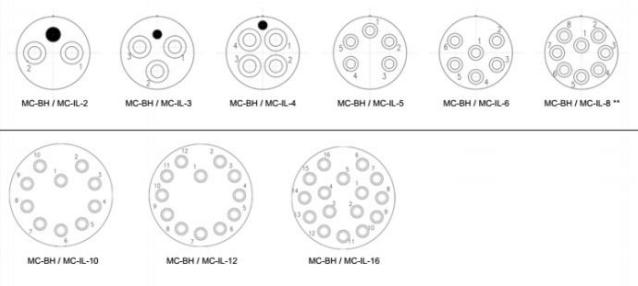

Contact configuration
1. Always apply grease before mating
2. Pull out, pull straight out, do not twist around
3. Do not pull on the cable and avoid sharp bends at cable entry
4. When using a bulkhead connector, ensure that there are no angular loads
5. All kinds of connectors should not be exposed to extended periods of heat or direct sunlight
Greasing and mating above water (dry mate)
1. Connectors must be greased with Molykote 44 Medium (recommended brand) before every mating
2. A layer of grease corresponding to minimum 1/3 of socket depth should be applied to the female connector
3. The inner edge of all sockets should be completely covered, and a thin transparent layer of grease left visible on the face of the connector
4. After greasing, fully mate the male and female connector in order to secure optimal distribution of grease on pins and in sockets
5. To confirm that grease has been sufficiently applied, de-mate and check for grease on every male pin. Then re-mate the connector

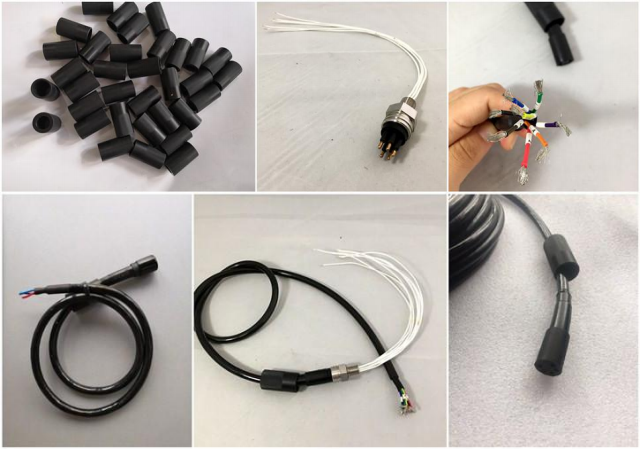

Product show
