Large Angle Swivel Underwater Camera

* Pan 360° free rotation / Tilt 180°

* Ruggy and affordable.

* Programmable functions: Focus, iris, day/night, white balance, etc.

* Data and power transfer by two wire

* Warranty 1 year, life-long maintenance.

  • GLF-UDC-DN110

  • Granfoo

  • GLF-UDC-DN110

Availability:
Quantity:
Inquire

This is a Underwater HD network Dome Camera, the camera is cylindrical with a diameter of 110mm, with 2 Mega pixels, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research, etc.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.


H30a071a2570c4965ba89642c9f485577y.jpg_250x250


• Pan 360° free rotation / Tilt 180°

• Ruggy and affordable.

• Programmable functions: Focus, iris, day/night, white balance, etc.

• Data and power transfer by two wire

• Warranty 1 year, life-long maintenance.


Model No.GLF-UDC-DN110
Resolution1920 x 1080
Signak to noise ratio>50dB (AGC off )
Electronic shutter1-1/10,000s
Optical zoom36X
horizontal view angle58.3-3.2 degrees (wide-angle telescope)
Movement rangePan 360°（endless ）Tilt 180&deg
Sensitivity

Color: 0.05Lux @ (F1.6, AGC ON)

BW: 0.01Lux @ (F1.6, AGC ON)

Resolution and frame rate

50Hz:25fps(1920×1080)、25fps(1280×720)

60Hz:30fps(1920×1080)、30fps(1280×720)

Video compressionH.265/H.264/MJPEG
LED light source6PCS

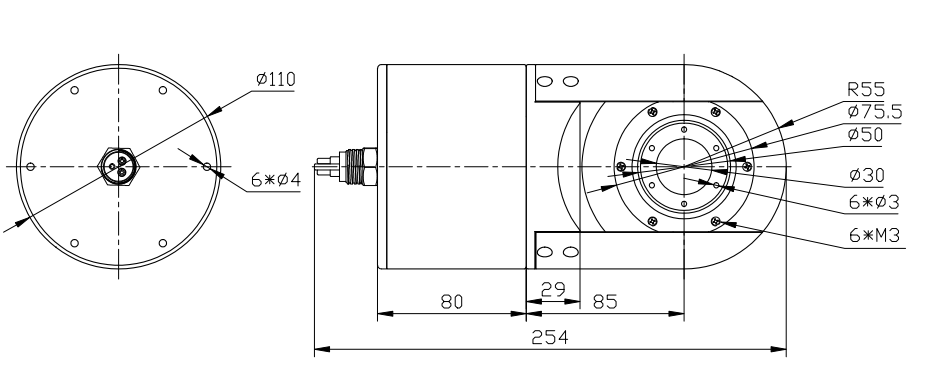

Camera sizeΦ110*254mm
ConnectorMCBH8M
Working temperature-10℃ ~ 50℃
Working depth100 meter
Interface typeRJ45
Power supply48V
WindowOptical acrylic
HousingSS316 or Aluminum 6061-T6
Weight in air10KG (SS 316 )



Underwater camera



Product Show

H891a47c40a3340a8bd60af0369ac116eF.jpg_250x250
H558c78fcea1242809a90cabc53241696C.jpg_250x250
H25fcb6a787bd44a988d9237bbd8dcdbfn.jpg_250x250

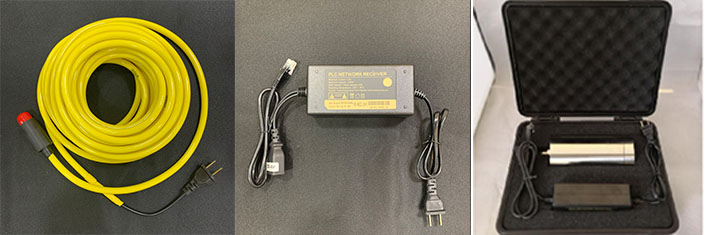

D120
